| IGBT / MOSFET Gate Drive Optocoupler - LITEON
| The LTV-3120 Series is ideally suited for driving power IGBTs and MOSFETs used in
motor control, inverters, SMPS and industrial applications.
- 2.5A Output peak current
- 15 to 30 Volts wirde operating (Vcc) range
- 5000V Highest Viso in market
- 25KV/us min common mode rejection (CMR) at Vcm = 1500V
- 500ns max propagation delay for fast switching speed
- Under voltage lock-out (UVLO) with hysteresis
- -40 °C to 100 °C Extended industrial temperature range
- 8 Pin DIP , DIP wide lead , DIP SMD package
- for saftey approval UL, cUL, VDE
■ LITEON IGBT MOSFET Gate Drive Optocoupler (PDF Download)
| |
|
|

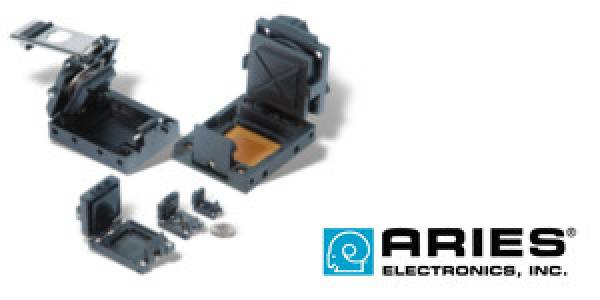

| Machined High-Frequency Center Probe Test Sockets Now Available in Pitch Sizes Down to 0.30 mm - ARIES
| Ideal for wide variety of BGA, CSP and MLF packages
Aries Electronics, manufacturer of standard, programmed and custom interconnection products, now offers machined high-frequency center probe test sockets to accommodate IC devices with a lead pitch of 0.30 mm. With very low inductance and capacitance, the sockets are ideal for a wide variety of BGA (ball grid array), CSP (chip scale package) and MLF (micro land frame) packages.
■ Machined High Frequency Center Probe Test Sockets (PDF Download)
■ ARIES Datasheet - DEMA Part ID: 24010
| |
|
|
